QA Tower in Dhaka


Location: Dhaka, Bangladesh
Architect: Mrinmoy Consultants
Facade Design: Innovation Glass

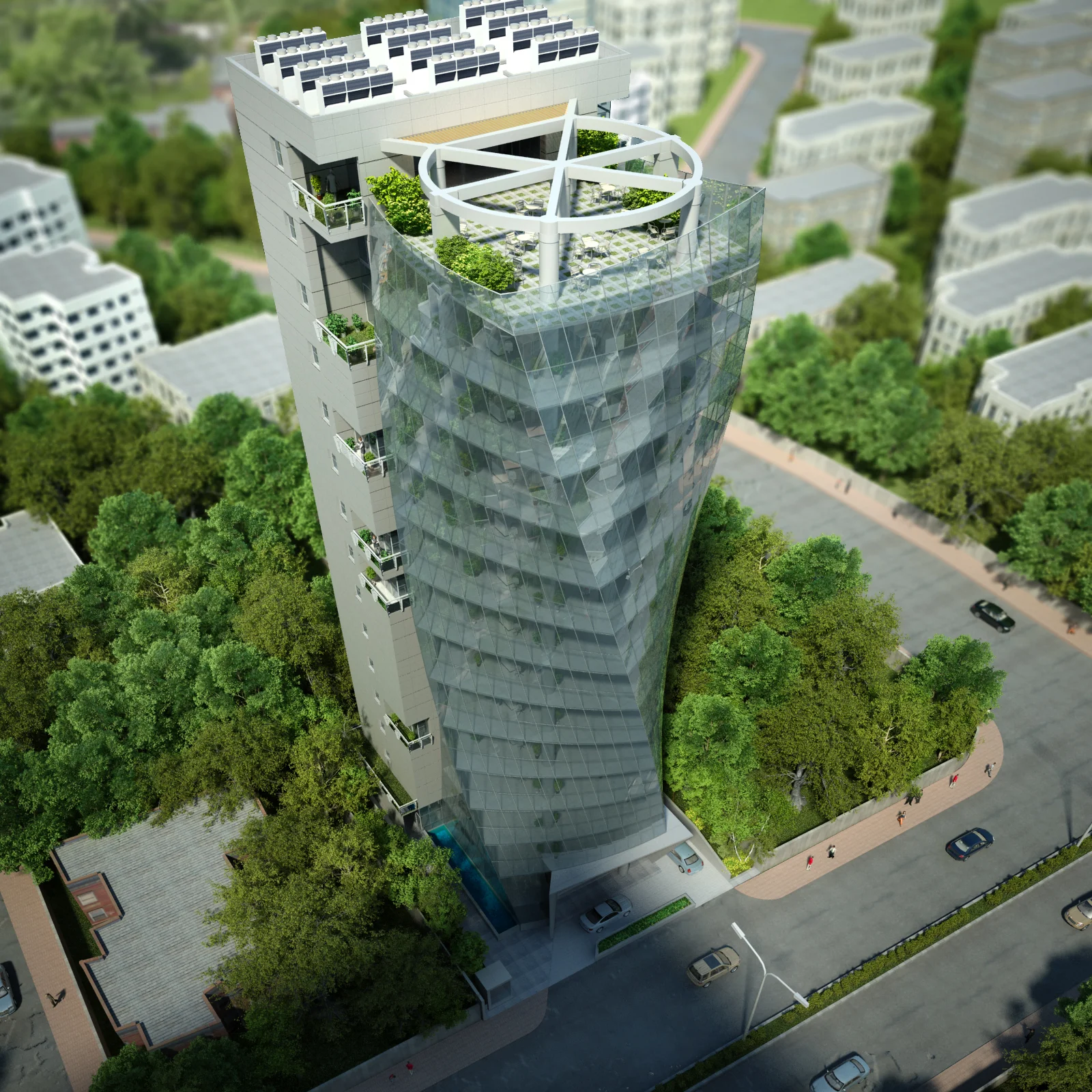

The new QA Tower in Dhaka, Bangladesh features warped glass panels that together achieve a remarkable twisting effect. The 11'8" by 3'11" panels are cold bent so that one corner is 5.3" off-plane from the other three. The floor-to-floor rotation is 6.6 degrees, and the ground-to-roof rotation is nearly 90 degrees.

pic day_Camera03.jpg

Construction progress

The warped facade is under construction. The tilted vertical mullions will accommodate a 5” warp in each glass panel.

Click the images below to expand
