VS1 SIGNATURE DETAILS

Sloping Sill & Head conditions

VS1 is a stick-built system and our mullions can be cut to any length, thereby accommodating sloping head and sill conditions. The absence of horizontal metal in VS1 curtain walls allows for such sloping conditions to be achieved with a high level of transparency.

Featured

The Pearl Innovation District

Designed by Ayers Saint Gross, CO Architects, Neighboring Concepts; installed by Harmon

The Howard R. Levine Center for Education will welcome visitors with a 30’ VS1 facade on four elevations. Exterior mullions create strong vertical accents.

➤ More renderings of these glass facades
➥ All-Glass Corners · Exterior Mullions ❍ VS1-A

Schuykill Avenue Research Building at CHoP

Designed by Canon Design, installed by Harmon

This project will feature a VS1 façade with both interior and exterior mullions, wrapping around the entire building in a curved, undulating geometry with varying heights creating a spectacular visual effect.

➤ Read more about this curved glass curtain wall
➥ Exterior Mullions · Segmented Wall · Toggle Fittings ❍ VS1-A100 & VS1-A110

Hall Park Hotel

Designed by HKS, installed by JR Butler

This VS1-A110 installation in Frisco, TX accommodates 10’ wide pieces of glass and integrates an all-glass vestibule into a facade with a sloping head condition.

Harwood International

Designed by Kengo Kuma, installed by Harmon

As you travel around this Kengo Kuma-designed building, the façade’s glass fin steps up from the first floor to the second floor through a series of integrated interior/exterior landscaped steps. Also integrated into the façade are two all-glass vestibules.

➤ Read more about this VS1-G all-glass lobby atrium
➥ All-Glass Vestibules ❍ VS1-G

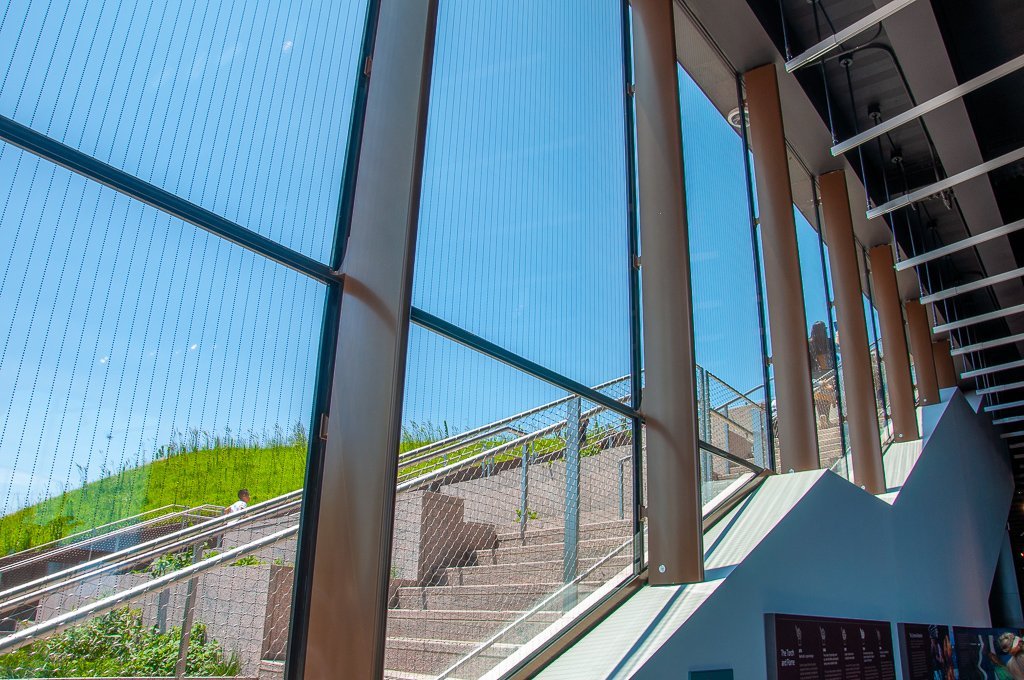

Statue of Liberty Museum

Designed by FXCOLLABORATIVE, installed by Josloff Glass

The new Statue of Liberty Museum, which opened in 2019, features two VS1 walls and a VS1 all-glass elevator enclosure.

The Heights Building

Designed by Bjark Ingels Group, installed by Glass Projects Resource

The lobby of the building is a 62’-wide and 41’-high VS1 facade. 14’ 6”-high panes of glass are supported by the rectangular jumbo VS1 mullion. The wall, which is hung from above, accommodates 2” of downward movement.

➤ Read more about this school lobby atrium project
➥ Jumbo Glass Sizes · Long Span ❍ VS1-A

VS1 SIGNATURE DETAILS

CUBIC CORNERS

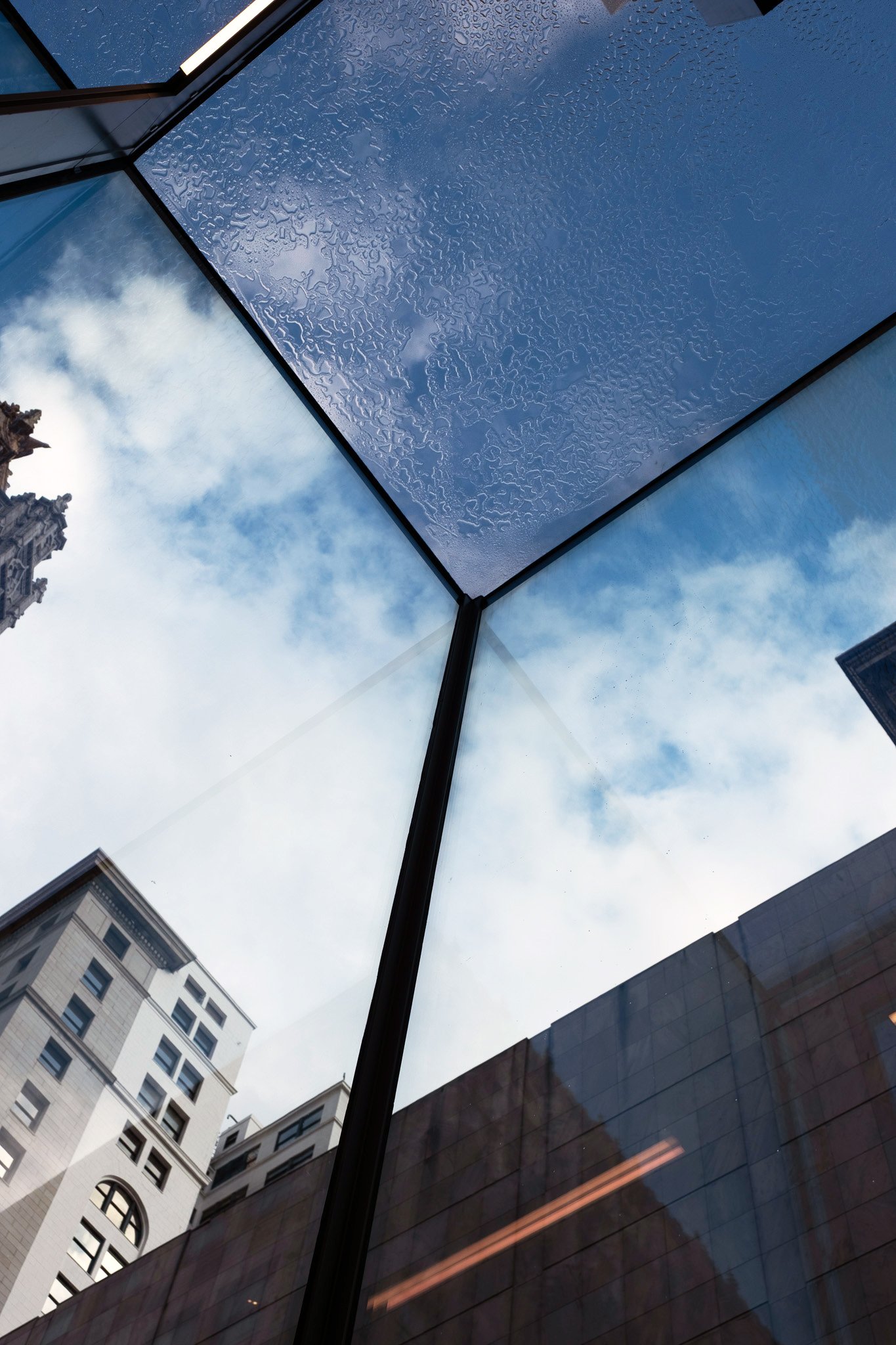

In addition to standard all-glass corners, VS1 can accommodate an all-glass three-plane corner. Most commonly used at the corner of entry lobbies and vestibules, this detail offers an extraordinary level of transparency to a glass curtain wall scope.

Featured

Rutgers Cancer Institute of New Jersey

Designed by HOK, installed by Harmon

This new healthcare building in New Jersey features a VS1 atrium wall that spans from level 1 to 4. Notably, this scope includes a VS1 façade-to-skylight-to-façade transition condition.

➤ Read more about this four-story glass atrium
➥ All-Glass Vestibules · Facade-Skylight Transition ❍ VS1-A

Hudson Valley VS1 Home

Designed by Franz Safford, built by Around the House LLC

The second VS1 Home was built on a Hudson Valley mountaintop looking west over the Catskill mountains of New York. Key to the owners’ vision for this house was to appreciate the panoramic view through a hyper transparent living room wall.

➤ Read more about this inspiring all-glass home
➥ All-Glass Vestibules · Segmented Wall · Shading Elements · Skylights · Residential ❍ VS1-A100

525 William Penn Place

Designed by Perkins Eastman, installed by DM Products

The flush exterior of the 25’-high lobby wall is achieved using the VS1 toggle system, which eliminates the need for external pinch plates. The smooth transition from wall to ceiling and the all-glass canopy and vestibule details are standard features of VS1 facades.

VS1 Study House Nr. 1

Designed by Franz Safford, installed by Around the House LLC

The VS1 Study House Nr. 1 is the global headquarters of Innovation Glass LLC. Nestled in the woods of New York’s beautiful Hudson Valley, it is a transformative step forward in the evolution of the home experience.

➤ View more photos of this groundbreaking all-glass home →
➥ All-Glass Vestibules · Facade-Skylight Transition · View all residential projects ❍ VS1-A

VS1 SIGNATURE DETAILS

Integrated Operable Vents

Zero sight-line windows are a standard detail in VS1 curtain walls. Typically operated by actuators, these vents integrated seamlessly into the mullion array and create a flush exterior aesthetic while allowing for manual ventilation or integration of a building-wide climate program.

Featured

Hudson Valley VS1 Home

Designed by Franz Safford, built by Around the House LLC

➤ Read more about this inspiring all-glass home
➥ All-Glass Vestibules · Segmented Wall · Shading Elements · Skylights · Residential ❍ VS1-A100

Amazon Hank Wall Renovation

Designed by WRNS, installed by Empire Architectural Metal

The new facade is composed of standard 5” VS1 mullions spaced at 1’ 8” apart. The mullion spacing was specifically chosen to match the 20th Century initial skylight mullion spacing to acknowledge the history of the building.

Friar Development Center

Designed by Perkins Eastman, installed by Massey Glass

VS1 mullions are used on the interior in some locations, and on the exterior in other areas. In one section, exterior-facing mullions are offset 12” from the mullion.

VS1 Study House Nr. 1

Designed by Franz Safford, installed by Around the House LLC

➤ View more photos of this groundbreaking all-glass home →
➥ All-Glass Vestibules · Facade-Skylight Transition · View all residential projects ❍ VS1-A

Gordon Parks Art Hall

Designed by Valerio Dewalt Train, installed by Alliance Glazing.

The VS1 system was used as the exterior glass facade for this extraordinary building. The geometry of the curtain wall is one of the most complex in the world but was readily solved by the VS1 system.

Earl Shapiro Hall at University of Chicago Lab School

Designed by Valerio Dewalt Train, installed by Trainor Glass

Exterior bent aluminum perforated painted fins create a texture based on the Fibonacci sequence to communicate the educational purpose of the building.

➤ Read more about this unique glass building envelope
➥ Shading Elements · Complex geometry · Slanted Mullions ❍ VS1-A

VS1 SIGNATURE DETAILS

LESS METAL, MORE DAYLIGHT

VS1 reduces metal framing by 50% by eliminating horizontals from the facade solution. The VS1 approach to curtain walls employs silicone at the sill, head, and glass joints, dramatically increasing transparency while reducing cost.

Vanishing Sills

VS1 facades can create an a jewel box aesthetic for lobby and street-level scopes by removing the metal at the sill. The result is the glass in its purest form, connecting the indoors and outside world in an unprecedented way.

Trammel Crow Center

St. Louis Holocaust Museum

Harwood International 14

QA Tower

430 N Michigan

Shirley Ryan Ability Lab

Clean Glass Joints

VS1 and its lack of metal at the horizontal glass joints empowers designers to create complex glass geometries without compromising on transparency, cost, or ease of installation.
